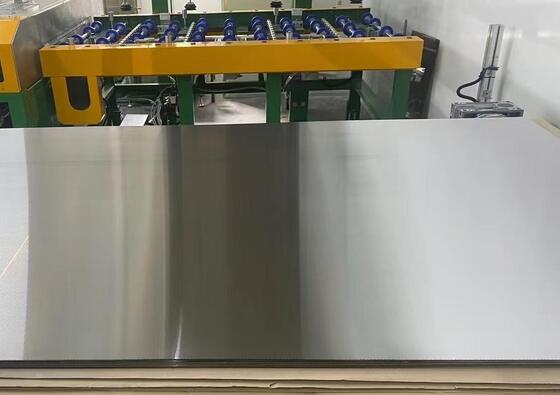

PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate ESSP-D420 Long Service Life, Corrosion Resistant German Steel Plate for Circuit Board & Copper Clad Laminate Lamination
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | MK |
| Número de modelo: | MKSP-D420 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 50 piezas |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | Envase de madera contrachapada resistente con material de protección suave adecuado en el interior, |
| Tiempo de entrega: | 10-20 días laborables |
| Condiciones de pago: | LC, D/A, D/P, T/T, Western Union |
| Capacidad de la fuente: | 10000 metros cuadrados por mes |
|
Información detallada |
|||
| Materia prima: | Acero inoxidable Dura420 alemán importado de primera calidad. | Vida útil: | Vida útil ultralarga de hasta 5 a 8 años |
|---|---|---|---|
| Característica: | Alta dureza y excelente resistencia a la corrosión. | Espesor estándar (mm): | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 |
| Nombre del producto: | Placa de prensa de laminación PCB y CCL Dura420 | Rugosidad de la superficie: | Ra≤0,15μm, Rz≤1,5μm |
| Resaltar: | PCB lamination press plate corrosion resistant,CCL lamination German steel plate,Dura420 high-precision laminated steel plate |
||
Descripción de producto
PCB & CCL Dura420 Ultra-Stable High-Precision Lamination Press Plate
The ESSP-D420 lamination press plate is manufactured with premium imported German Dura420 stainless steel, specifically developed for PCB and CCL mass production lamination processes. This professional-grade plate delivers extremely stable and consistent pressing performance in long-term cyclic operations.
Core Product Advantages
German Dura420 Premium Press Plate - Ultra-low high-temperature warpage, 5-8 years long lifespan, energy-saving & high-precision solution for PCB & CCL lamination
Key Features
- Premium imported German Dura420 stainless steel with high-purity material properties
- Ultra-stable and consistent pressing effect with zero abnormal deformation during high-temperature lamination
- Minimum warpage degree under continuous high-temperature conditions for precise board dimension tolerance
- Ultra-long service life up to 5-8 years, reducing replacement frequency and material costs
- Excellent thermal conductivity and stable thermal expansion coefficient for energy savings
- High hardness and outstanding corrosion resistance for long-term cyclic use
- Compatible with all types of industrial lamination steel plate washing machines
Technical Specifications
Basic Parameters
| Steel Material | Imported German Dura420 stainless steel |
| Standard Thickness | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 mm |
| Service Life | 5-8 years of long-term service life |
Standard Sizes
PCB Lamination Press Plate (L × W, mm):
1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1295×787, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
CCL Lamination Press Plate (L × W, mm):
1910×1270, 2210×1270, 2220×1270
1910×1270, 2210×1270, 2220×1270
Performance Parameters
| Parameter | Dura420 Mass-Lam Plate | Dura420 Pin-Lam Plate |
|---|---|---|
| Thickness | 1.0-2.0mm | 1.0-2.0mm |
| Width | ≤1300mm | ≤1300mm |
| Length | ≤2410mm | ≤2410mm |
| Thickness Tolerance | ±0.10mm | ±0.10mm |
| Surface Roughness | Ra≤0.15μm, Rz≤1.5μm | Ra≤0.15μm, Rz≤1.5μm |
| Warpage Degree | ≤3mm/M | ≤3mm/M |
| L/W Size Tolerance | ±1mm | ±1mm |
| Yield Strength | ≥1175 N/mm² | ≥1175 N/mm² |
| Tensile Strength | ≥1400 N/mm² | ≥1400 N/mm² |
| Hardness HRC | 50HRC±2 | 50HRC±2 |
| Work Temperature | ≤400℃ | ≤400℃ |
| Thermal Conductivity | ≥25W/MK at 300℃ | ≥25W/MK at 300℃ |
Usage Note: The steel plate becomes slightly thinner after repeated pressing cycles. Stop using when thickness is below 1.3mm; plates between 1.3mm-1.6mm must be free of deformation and warpage to ensure lamination accuracy.
